Nissan Altima 2007-2012 Service Manual: Rear seat belt

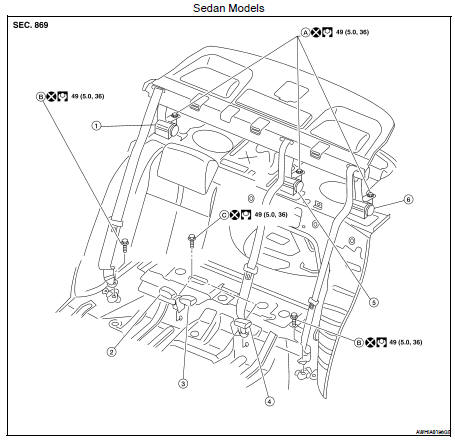

Exploded View

1. Seat belt retractor RH

2. Seat belt buckle RH

3. Seat belt buckle center

4. Seat belt buckle LH

5. Seat belt retractor center

6. Seat belt retractor LH

A. Retractor anchor bolt

B. Outer anchor bolt

C. Buckle anchor bolt

1. Seat belt retractor outer RH

2. Seat belt buckle

3. Seat belt retractor center

4. Seat belt retractor outer LH

A. Retractor anchor bolt

B. Retractor screw

C. D-ring anchor bolt

D. Anchor bolt

E. Retractor anchor bolt center

Removal and Installation

REMOVAL OF SEAT BELT RETRACTOR (SEDAN)

1. Remove the rear seat cushion. Refer to SE-53, "Removal and Installation".

2. Remove the outer anchor bolt.

3. Remove the rear parcel shelf finisher. Refer to INT-38, "Removal and Installation".

4. Remove retractor anchor bolt, then remove seat belt retractor.

INSTALLATION OF SEAT BELT RETRACTOR (SEDAN)

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system in functioning within specifications. Refer to SB-4, "Inspection".

REMOVAL OF SEAT BELT RETRACTOR (COUPE OUTER)

1. Remove the rear seat cushion and seat back. Refer to SE-25, "Removal and Installation".

2. Remove upper pillar finisher and rear lower finisher. Refer to INT-15, "Removal and Installation".

3. Remove the anchor bolt, then remove D-ring anchor bolt.

4. Remove retractor screw and retractor anchor bolt, then remove seat belt retractor outer.

INSTALLATION OF SEAT BELT RETRACTOR (COUPE OUTER)

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to SB-4, "Inspection".

REMOVAL OF SEAT BELT RETRACTOR (COUPE CENTER)

1. Remove the rear seat cushion and seat back. Refer to SE-25, "Removal and Installation".

2. Remove the rear parcel shelf finisher. Refer to INT-17, "Removal and Installation".

3. Remove the anchor bolt.

4. Remove the retractor anchor bolt, then remove seat belt retractor center.

INSTALLATION OF SEAT BELT RETRACTOR (COUPE CENTER)

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to SB-4, "Inspection".

REMOVAL OF SEAT BELT BUCKLE

1. Remove the rear seat cushion. Refer to SE-25, "Removal and Installation".

2. Remove buckle anchor bolt, then remove the seat belt buckle. Refer to SB-11, "Exploded View".

INSTALLATION OF SEAT BELT BUCKLE

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to SB-4, "Inspection".

    Front seat belt
    Exploded View 1. D-ring anchor 2. Adjuster cover 3. Outer anchor bolt cover 4. Seat belt pre-tensioner connector 5. Seat belt retractor 6. Seat belt adjuster A. D-ring anchor bolt B. Outer a ...

    Latch system for children
    Removal and Installation NOTE: The LATCH (Lower Anchors and Tether for Children) system is a built-in part of the vehicle structure, and is not serviceable. ...
