Nissan Altima 2007-2012 Service Manual: Service data and specifications (SDS)

Standard and Limit

GENERAL SPECIFICATIONS

DRIVE BELTS


DRIVE BELTS

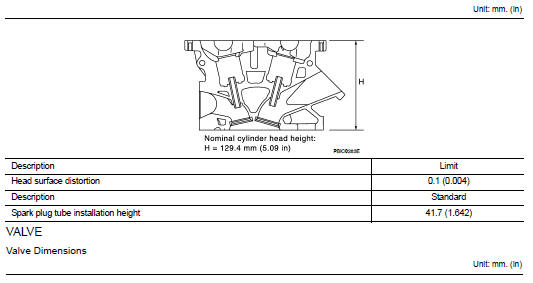

CYLINDER HEAD


CYLINDER HEAD



* Approximately 80В°C (176В°F)


* Approximately 80В°C (176В°F)

Available Valve Lifter


Valve Spring


Valve Spring





CAMSHAFT AND CAMSHAFT BEARING


CAMSHAFT AND CAMSHAFT BEARING

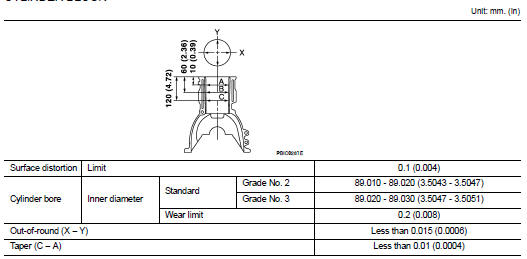

CYLINDER BLOCK


CYLINDER BLOCK


PISTON, PISTON RING, AND PISTON PIN


PISTON, PISTON RING, AND PISTON PIN

Available Piston

Piston Ring


Piston Ring

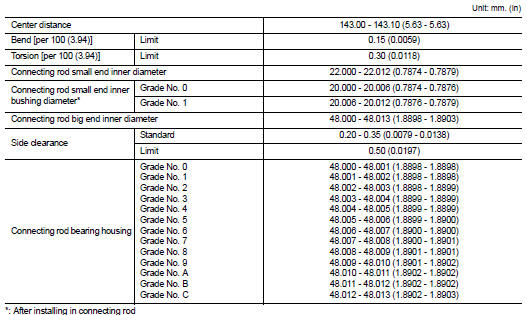

CONNECTING ROD


CONNECTING ROD

CRANKSHAFT


CRANKSHAFT

*: Total indicator reading


*: Total indicator reading

MAIN BEARING

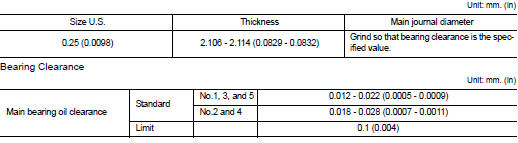

Undersize


Undersize

CONNECTING ROD BEARING


CONNECTING ROD BEARING

Undersize


Undersize

Bearing Clearance


Bearing Clearance

FLYWHEEL


FLYWHEEL

Precaution


    How to select piston and bearing
    DESCRIPTION *For the service parts, the grade for fitting cannot be selected between a piston pin and a connecting rod. (Only 0 grade is available.) The information at the shipment from the pl ...

    Precaution
    Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-T ...
