Nissan Altima 2007-2012 Service Manual: Service data and specifications (SDS)

General Specifications

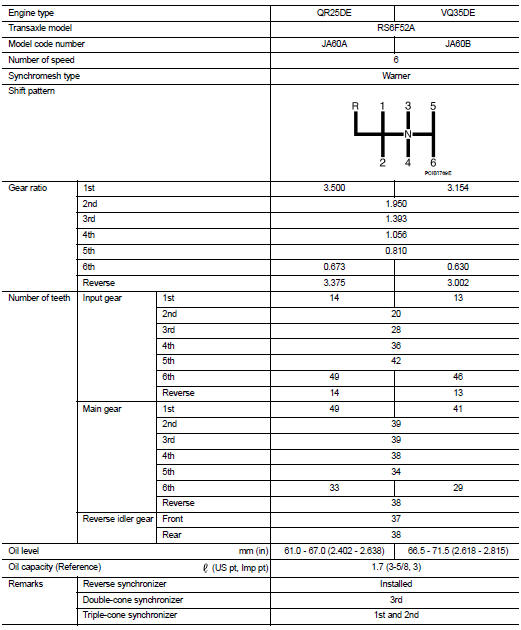

TRANSAXLE

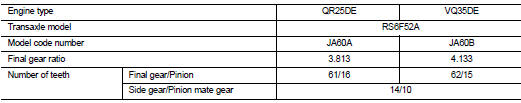

FINAL GEAR

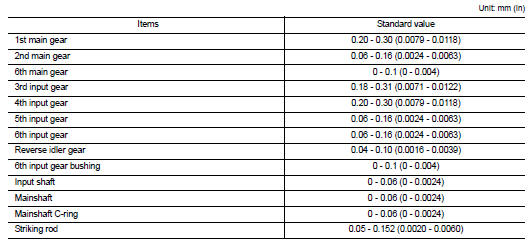

End Play

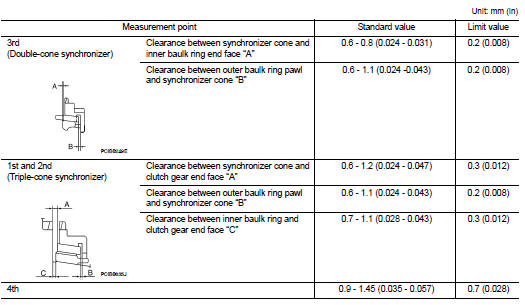

Baulk Ring Clearance

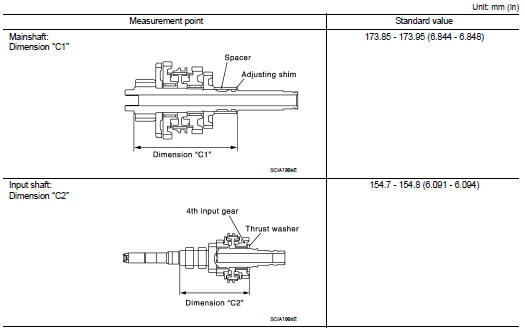

Dimension

Differential Side Bearing Preload

Differential Side Gear Clearance

    Shift fork and fork rod
