Nissan Altima 2007-2012 Service Manual: Symptom diagnosis

INTERIOR LIGHTING SYSTEM SYMPTOMS

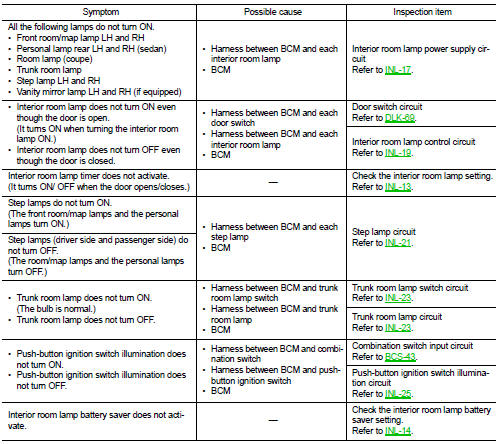

Symptom Table

CAUTION: Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.

    ECU diagnosis
    BCM (BODY CONTROL MODULE) Reference Value VALUES ON THE DIAGNOSIS TOOL Terminal Layout Physical Values 1: Sedan only 2: With LH front window anti ...
