Nissan Altima 2007-2012 Service Manual: Symptom diagnosis

COMBINATION SWITCH SYSTEM SYMPTOMS

Symptom Table

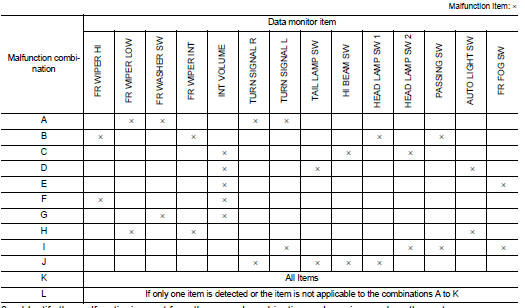

1. Perform the data monitor of CONSULT-III to check for any malfunctioning item.

2. Check the malfunction combinations.

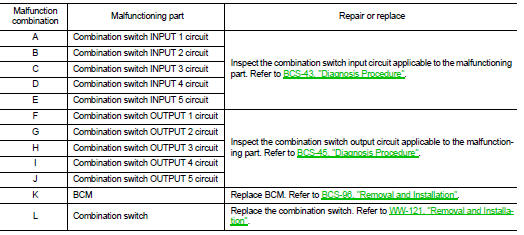

3. Identify the malfunctioning part from the agreed combination and repair or replace the part.
