Nissan Altima 2007-2012 Service Manual: Air breather hose

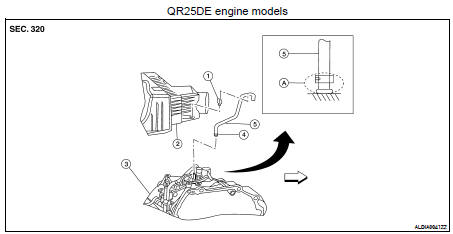

Exploded View

1. Clip

2. Air cleaner case

3. Transaxle assembly

4. Clip

5. Air breather hose

A. Set paint mark and clip at front side

1. Air cleaner case

2. Transaxle assembly

3. Clip

4. Air breather hose

5. Clip

A. Set paint mark and clip at front side

Removal and Installation

Refer to the figure for air breather hose removal and installation information. CAUTION: • Install air breather hose with paint mark and clip facing front.

• Install air breather hose onto air breather tube until overlap area reaches the spool.

• Install air breather hose to air cleaner case by fully inserting the clip.

• Make sure there are no pinched or restricted areas on air breather hose caused by bending or winding when installing it.
