Nissan Altima 2007-2012 Service Manual: B210B starter control relay

Description

Starter control relay, integrated in IPDM E/R, permits the starter relay operation when in N or P position and the steering is locked or unlocked. It is installed in parallel with the starter relay.

DTC Logic

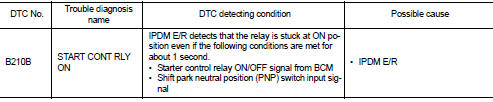

DTC DETECTION LOGIC

NOTE: • If DTC B210B is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to SEC-433, "DTC Logic".

• If DTC B210B is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to SEC-434, "DTC Logic".

DTC CONFIRMATION PROCEDURE

1.PERFORM DTC CONFIRMATION PROCEDURE

1. Turn the power supply position to start under the following conditions and wait for at least 1 second.

- CVT selector lever is in the P or N position.

- Depress the brake pedal

2. Check “Self diagnostic result” with CONSULT-III.

Is DTC detected? YES >> Refer to SEC-445, "Diagnosis Procedure".

NO >> Inspection End.

Diagnosis Procedure

1.INSPECTION START

1. Turn ignition switch ON.

2. Check “Self diagnostic result” with CONSULT-III.

3. Touch “ERASE”.

4. Perform DTC Confirmation Procedure.

See PCS-45, "DTC Index".

Is the DTC B210B displayed again? YES >> Replace IPDM E/R. Refer to PCS-48, "Removal and Installation".

NO >> Inspection End.
