Nissan Altima 2007-2012 Service Manual: Can communication system

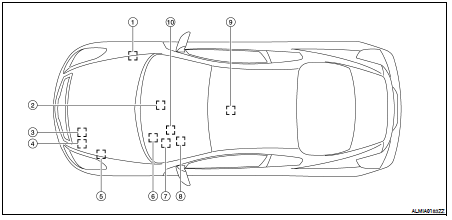

Component Parts Location

1. ABS actuator and electric unit (control unit) E26

2. AV control unit M46

3. TCM F16

4. ECM E10

5. IPDM E/R E17

6. BCM M19

7. Combination meter M24

8. Steering angle sensor M53

9. Air bag diagnosis sensor unit M35

10. Data link connector M22

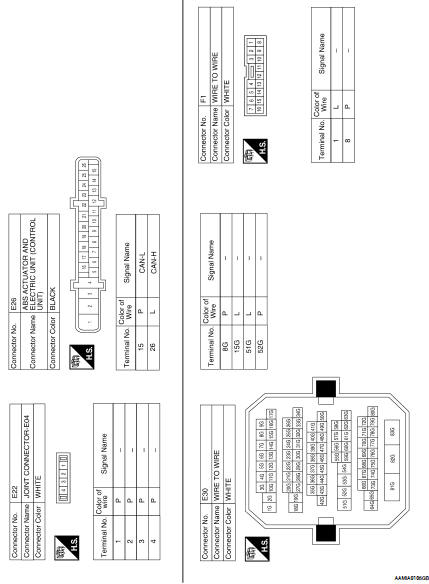

Wiring Diagram - CAN SYSTEM -

    Malfunction area chart
    Main Line Branch Line Short Circuit ...
