Nissan Altima 2007-2012 Service Manual: Crash zone sensor

Removal and Installation

REMOVAL

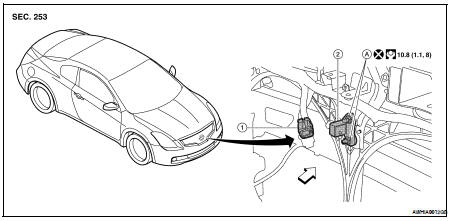

1. Crash zone sensor harness connector

2. Crash zone sensor

A. Crash zone sensor nuts

CAUTION: • Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least three minutes.

• Do not use air tools or electric tools for servicing.

• Do not use old fixing nuts after removal; replace with new nuts.

• Do not cause impact to the crash zone sensor by dropping etc. Replace the crash zone sensor if it has been dropped or sustained an impact.

• Replace the crash zone sensor of deployed SRS driver air bag and deployed SRS front passenger air bag.

1. Disconnect the negative and positive battery terminals, then wait at least three minutes.

2. Remove the cover and the air duct.

3. Remove the center clamp screw for upper radiator hose and position aside.

4. Disconnect the crash zone sensor harness connector.

5. Remove the nuts, then remove crash zone sensor.

INSTALLATION

Installation is in the reverse order of removal. CAUTION: • Be careful not to damage the crash zone sensor harness.

• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.

• In case a malfunction is detected by the air bag warning lamp, reset by the self-diagnosis function and delete the memory by CONSULT−lIl.

• If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunctions.

Refer to SRC-12, "SRS Operation Check".
