Nissan Altima 2007-2012 Service Manual: Multi AV system (coupe)

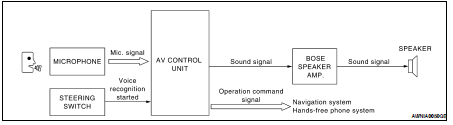

System Diagram

System Description

The multi AV system consists of the following systems.

• Navigation system

• Audio system

• Rear view monitor

• Hands-free phone system

Refer to the following table for multi AV system descriptions.

VOICE RECOGNITION

The multi AV system uses voice recognition to control functions of the following systems: • Navigation system

• Hands-free phone system

TOUCH PANEL

The multi AV system uses a touch panel display to control functions of the following systems: • Audio system

• Navigation system

• Hands-free phone system

Component Parts Location

1. Front tweeter LH M51

2. Steering wheel audio control switches

3. CD changer M42

4. Front tweeter RH M52

5. AV control unit M46, M47, M48, M81, M90, M91

6. Center speaker M151

7. Combination meter M24

8. Aux Jack M41

9. Door speaker

LH D3

RH D103

10. Rear subwoofer

LH B25

RH B47

11. Rear tweeter

LH B16

RH B100

12. BOSE speaker amp. B121, B122 (view with trunk carpet and RH floor spacer removed)

13. Microphone R7

14. Rear view camera control unit B31 (view with trunk side finisher LH removed)

14. Rear view camera control unit B31 (view with trunk side finisher LH removed)

Component Description
