Nissan Altima 2007-2012 Service Manual: Multi av system (sedan)

System Diagram

System Description

The multi AV system consists of the following systems.

• Navigation system

• Audio system

• Rear view monitor

• Hands-free phone system

Refer to the following table for multi AV system descriptions.

VOICE RECOGNITION

The multi AV system uses voice recognition to control functions of the following systems:

• Navigation system

• Hands-free phone system

TOUCH PANEL

The multi AV system uses a touch panel display to control functions of the following systems: • Audio system

• Navigation system

• Hands-free phone system

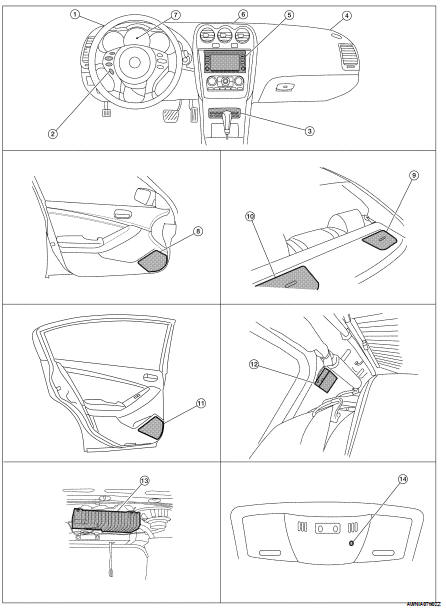

Component Parts Location

1. Tweeter LH M51

2. Steering wheel audio control switches

3. CD changer M42

4. Tweeter RH M52

5. AV control unit M46, M47, M48, M81, M90, M91

6. Center speaker M151

7. Combination meter M24

8. Front door speaker

LH D3

RH D103

9. Rear subwoofer RH B124

10. Rear subwoofer LH B120

11. Rear door speaker

LH D202

RH D302

12. Antenna amp M502 (view with rear pillar finisher RH removed)

13. BOSE speaker amp. B121, B122

14. Microphone R7

15. Rear view camera control unit B31 (view with trunk side finisher LH removed)

16. Rear view camera B35
