Nissan Altima 2007-2012 Service Manual: Rear regulator

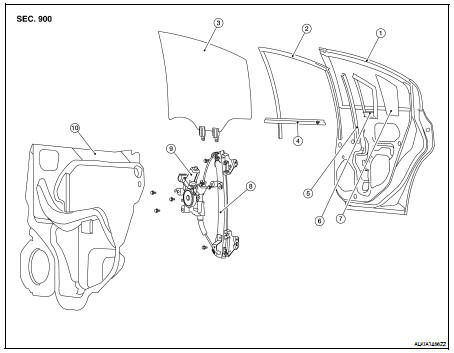

Exploded View

1. Rear door

2. Door glass run

3. Door glass

4. Inside seal

5. Partition sash

6. Door rear glass seal

7. Door rear glass

8. Regulator assembly

9. Window motor

10. Water shield

Disassembly

1. Remove the power window motor screws (A).

2. Remove power window motor from regulator assembly.

Assembly

Assembly is in the reverse order of disassembly.
