Nissan Altima 2007-2012 Service Manual: Shift lock system

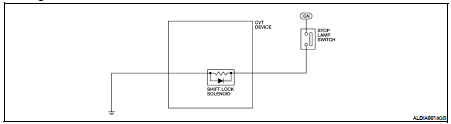

System Diagram

System Description

The selector lever cannot be shifted from “P” position to any other position unless the ignition switch is in the ON position and the brake pedal is depressed.

Component Parts Location

1. BCM (view with instrument panel removed

2. Steering column

3. Stop lamp switch

4. Shift lock release button

5. Detention switch (for manual shift)

6. Shift lock solenoid/Detent switch (key)

7. CVT device connector

Component Description

    Shift mechanism
