Nissan Altima 2007-2012 Service Manual: Ignition coil

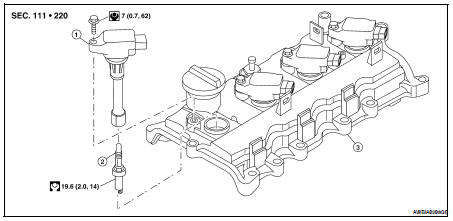

Removal and Installation

1. Ignition coil


1. Ignition coil

2. Spark plug

3. Rocker cover

REMOVAL

1. Remove the engine cover.

2. Disconnect the harness connector from the ignition coil.

3. Remove the ignition coil.

CAUTION: Do not drop or shock it.

INSTALLATION

Installation is in the reverse order of removal.
