Nissan Altima (L33) 2013-2018 Owners Manual: Front power seat adjustment (if so equipped for driver’s seat)
Operating tips
WARNING
Before driving the vehicle, return the seatback to an upright seating position after manually releasing it. Also, make sure the seat is locked in place. Failure to do so may cause the seat to move in a collision or sudden stop. This may result in damage to the seat or personal injury.
● The power seat motor has an auto-reset overload protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.
● Do not operate the power seat switch for a long period of time when the engine is off.
This will discharge the battery.

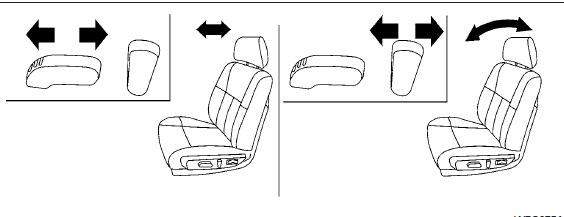

Forward and backward
Moving the switch forward or backward will slide the seat forward or backward to the desired position.
Reclining
Move the recline switch backward until the desired angle is obtained. To bring the seatback forward again, move the switch forward and move your body forward. The seatback will move forward.
The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. See “Precautions on seat belt usage” later in this section. Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the shift lever is in the P (Park) position.
Seat lifter (if so equipped for driver’s seat)
Push the front or rear end of the switch up or down to adjust the angle and height of the seat cushion.
Lumbar support (if so equipped for driver’s seat)
The lumbar support feature provides adjustable lower back support to the driver. Push the switch forward or backward to adjust the seat lumbar area.
Front manual seat adjustment (if so equipped
Forward and backward Pull the center of the bar up and hold it while you slide the seat forward or backward to the desired position. Release the bar to lock the seat in position. Reclining T ...Folding rear seat
